The S13-M-630/10-0.4KV is a 630 kVA oil-immersed distribution transformer with a nominal 10 kV high-voltage winding and 0.4 kV low-voltage winding. It is designed for stepping medium-voltage power down to a usable low-voltage distribution level.
However, the model number alone does not define every technical detail. Buyers should also confirm frequency, vector group, impedance, tapping range, losses, temperature rise, insulation level, accessories, and operating conditions with an experienced oil immersed transformer manufacturer.
What Does S13-M-630/10-0.4KV Mean?
Under commonly used Chinese transformer model nomenclature, the designation can normally be interpreted as follows:
- S: three-phase transformer series
- 13: series or performance-level designation
- M: commonly indicates a sealed oil-filled construction
- 630: rated capacity of 630 kVA
- 10: nominal high-voltage rating of 10 kV
- 0.4: nominal low-voltage rating of 0.4 kV
Technical writing normally uses kV, although the exact keyword uses KV.
For a three-phase 630 kVA transformer operating at its nominal voltage, the calculated rated line currents are approximately 36.4 A on the 10 kV side and 909 A on the 0.4 kV side. Final current values and terminal sizing must be confirmed on the approved technical data sheet.
The S13 designation does not by itself prove compliance with a specific loss limit or destination-country regulation. Guaranteed values must appear in the supplier’s technical offer and test report.
Visible Construction and Typical Applications

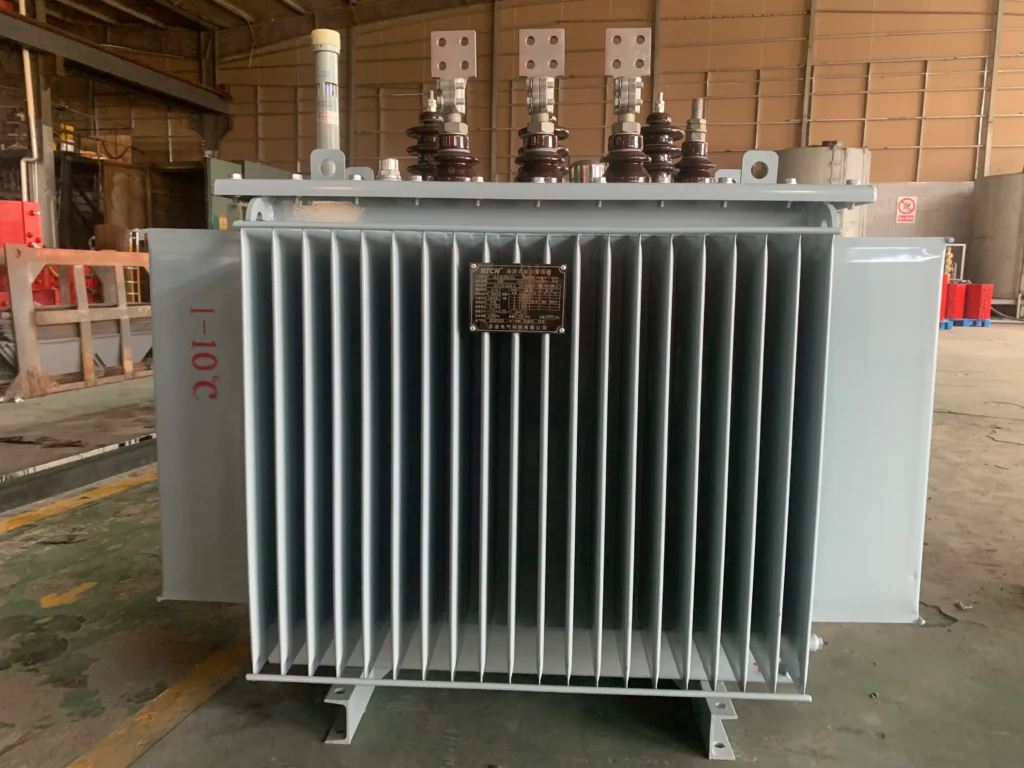

The supplied factory photograph shows a completed gray oil-immersed transformer. Visible components include a corrugated steel tank, brown porcelain bushings, low-voltage connection pads, lifting lugs, a bolted tank cover, a nameplate, and a lower valve connection.
The corrugated panels provide additional cooling surface. In many sealed designs, they also help accommodate changes in oil volume as operating temperature varies. The exact tank and oil-preservation arrangement should still be verified from the approved drawing.
Inside an S13-M-630/10-0.4KV transformer, insulating oil surrounds the core, windings, and solid insulation. The oil provides dielectric insulation and transfers heat to the tank’s external cooling surfaces.
Typical applications include:
- Industrial factories
- Commercial developments
- Residential distribution systems
- Utility distribution networks
- Renewable-energy projects
- Packaged and compact substations
- Infrastructure and construction projects
Outdoor installation is common, but the buyer must consider foundation design, cable connections, lightning protection, earthing, oil containment, fire safety, and maintenance access.
Specifications Buyers Must Confirm
Before ordering an S13-M-630/10-0.4KV, confirm the complete electrical and mechanical scope.
Electrical Data
Specify:
- Rated frequency
- Vector group
- Percentage impedance
- High-voltage tapping range
- Tap step and tap-changer type
- Insulation level
- No-load loss
- Load loss
- No-load current
- Temperature-rise limits
For projects using IEC specifications, buyers can consult IEC 60076-1 for power transformers when reviewing ratings, connection symbols, liquid-preservation systems, tank testing, transport, and general technical requirements.
Installation Data
Provide the maximum ambient temperature, minimum temperature, installation altitude, humidity, pollution conditions, and indoor or outdoor location. High altitude or unusual ambient temperatures may require design adjustments.
Accessories
Confirm whether the transformer requires:
- Oil-level indication
- Pressure-relief protection
- Oil or winding temperature indication
- Drain and sampling valves
- Cable boxes or terminal enclosures
- Surge arresters
- Monitoring contacts
- Wheels or mounting provisions
The photograph should not be used to assume the final accessory scope. Only the approved technical documents define what is included.
Manufacturing, Oil Filling, and Testing
Production control for the S13-M-630/10-0.4KV should cover core assembly, winding, insulation, active-part drying, tank fabrication, oil treatment, filling, sealing, and routine testing.
Moisture control is especially important before oil filling. The insulating liquid specification must also be agreed upon between the buyer and manufacturer. IEC 60296 for mineral insulating oils provides specifications and test methods for mineral oil used for electrical insulation and heat transfer.
Buyers can learn more about this stage in BTCN Electric’s transformer oil filling process.
Applicable routine tests may include:
- Winding resistance measurement
- Voltage-ratio measurement
- Vector-group verification
- No-load loss and current measurement
- Load loss and impedance measurement
- Insulation tests
- Functional inspection of accessories
- Oil tests when specified
Request the approved data sheet, dimensional drawing, nameplate drawing, accessory list, and routine test report before shipment.
Frequently Asked Questions
Is the S13-M-630/10-0.4KV always supplied with the same vector group?
No. A common model designation does not replace the project specification. Confirm the required vector group in the technical offer and approved nameplate drawing.
Is this transformer suitable for outdoor installation?
It is commonly used outdoors, but the coating, bushings, accessories, corrosion protection, sealing, and site layout must suit the local environment.
What information is needed for a quotation?
Provide frequency, vector group, impedance, tapping range, loss requirements, installation conditions, applicable standard, accessories, quantity, destination, and delivery terms.
The S13-M-630/10-0.4KV provides a clear starting point for selecting a 630 kVA, 10/0.4 kV oil-immersed distribution transformer. Final selection should always be based on a complete technical specification rather than the model code alone.
