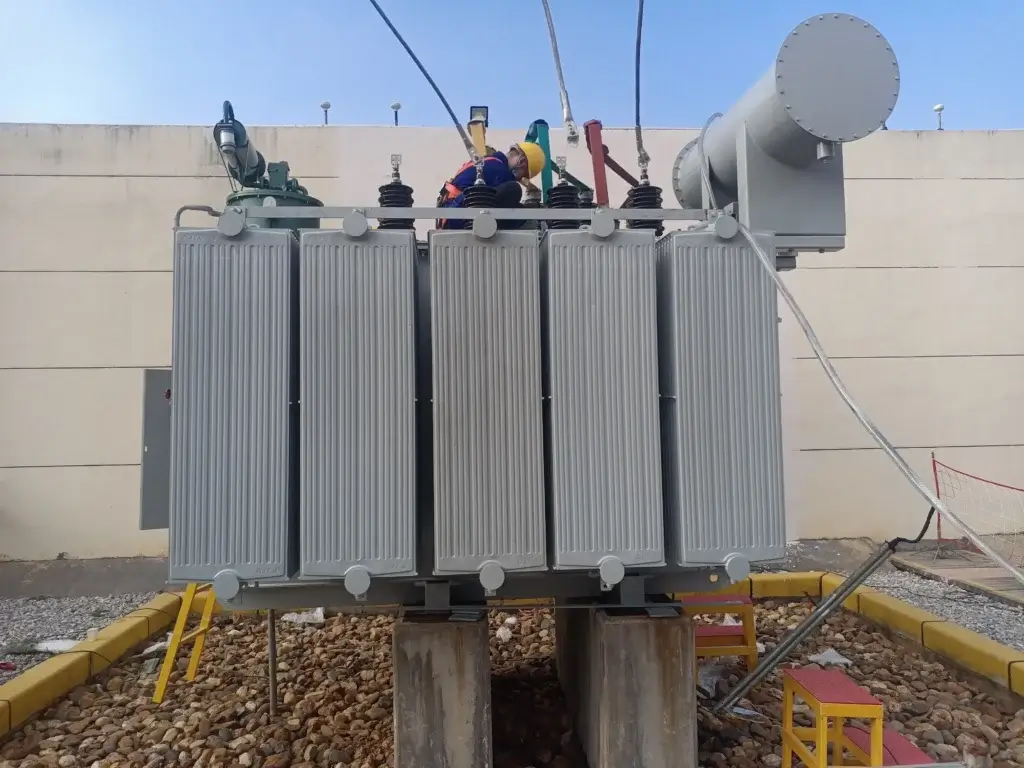

Welcome to another field dispatch from the Baitong Electric engineering team. The installation photograph provided above isn’t a generic stock image; it is a real-world 35kV substation deployment handled by our heavy-duty equipment. When international EPC contractors and grid operators search for a reliable oil immersed transformer china manufacturer, they frequently limit their focus to the factory’s assembly line and raw material sourcing.
However, true manufacturing expertise extends far beyond the workshop floor. It encompasses exactly how the equipment integrates into the harsh physical realities of the installation site. Sourcing successfully means partnering with a team that understands civil foundations, fluid dynamics, and live-line safety. Let’s break down the engineering reality shown in this installation photo and explore what separates professional grade infrastructure from standard export units.
1.Engineering the Foundation for Heavy-Duty Grids
The Critical Role of Secondary Containment Pits
When you procure an oil immersed transformer china export unit, the civil preparation of your substation is your very first line of defense. Look closely at the bottom of the provided photograph. You will notice that the main tank is not resting flat on a standard concrete pad. Instead, it is elevated on sturdy concrete plinths directly over a deep bed of coarse river stone.
We strictly advise and engineer for this setup because mineral oil requires rigorous secondary containment protocols. In the highly unlikely event of a catastrophic tank breach or extreme overpressure venting, the insulating oil drops directly into the gravel pit below. The stones serve to immediately quench any potential flames by rapidly cooling the oil and restricting the oxygen flow. The fluid is then safely channeled into an underground catchment system, preventing widespread fire and severe environmental soil contamination.
Structural Load and Moisture Defense
Elevating the unit on these plinths does more than just facilitate oil drainage. It fundamentally protects the lower welded seams of the corrugated tank from standing water, snowpack, and ground moisture. This drastically reduces the risk of structural corrosion over a thirty-year operational lifespan. For an oil immersed transformer china supplier dealing with global deployments, ensuring the base design can handle both the immense static weight of the fluid-filled unit and dynamic seismic loads of the specific region is absolutely non-negotiable.
2.Precision on Top: High-Voltage Bushings and Oil Preservation
Managing the Conservator Tank System
Shifting our focus to the upper section of the image, you can clearly see a field technician conducting final hardware inspections near the massive cylindrical conservator tank. As a dedicated oil immersed transformer china factory, we engineer these conservator tanks to handle the volatile thermal expansion of the dielectric fluid.
When the transformer operates at full grid load under a harsh summer sun, the internal oil volume naturally expands. The conservator tank absorbs this expansion. It utilizes a highly sensitive breather system to ensure that any outside air drawn back into the tank during the cooling cycle is completely stripped of moisture. This keeps the internal transformer oil perfectly dry, preserving its dielectric strength and preventing the solid paper insulation from degrading prematurely.
Safe Clearances During Field Commissioning
The technician’s position on top of the tank also highlights the critical importance of spatial clearances. The high-voltage porcelain bushings must maintain strict phase-to-ground and phase-to-phase distances. When we export an oil immersed transformer china built to strict IEC standards, our design team maps out the exact geometry required for safe live-line maintenance. The layout ensures that your local maintenance crews can safely access the Buchholz relay or monitor the oil level indicators without ever breaching the safety envelope of energized components.
3.Thermal Dissipation in Harsh Environments
Maximizing ONAN Cooling Efficiency
The side profile of the transformer in the photograph is dominated by massive, heavy-gauge corrugated radiator banks. Heat is the ultimate enemy of internal solid insulation, and efficiently moving that heat away from the core is the most vital function of the tank design. To combat thermal degradation, the engineering team at Baitong Electric calculates the exact surface area required to dissipate core and winding losses through natural convection.
This ONAN (Oil Natural Air Natural) cooling strategy relies entirely on unobstructed airflow. The hot oil rises to the top of the tank, flows through the external radiator fins where it is cooled by the ambient air, and cycles back to the bottom of the core in a continuous, unpowered loop.
Preventing Site Obstructions
A frequent technical issue we encounter as a premier oil immersed transformer china manufacturer is contractors building concrete blast walls, acoustic sound barriers, or tight security fencing far too close to these radiator fins. If the airflow is choked by civil structures, the thermal gradient collapses. This leads to localized hot spots within the copper windings. In our technical documentation, we explicitly define the minimum clearance radius around these radiator banks. Ensuring these thermal pathways remain totally clear guarantees that the unit will continuously operate within its specified temperature rise limits.
4.Sourcing Directly from the Manufacturing Floor
Bridging the Gap Between Design and Field Execution
Sourcing heavy electrical infrastructure shouldn’t involve guessing games, nor should it require communicating through third-party trading companies that lack fundamental technical depth. What you see in the installation photograph is the direct result of alignment between the site engineers and the factory floor. Every single component, from the placement of the bottom oil drain valves to the orientation of the high-voltage terminals, was engineered to match the specific layout of the substation.
Partnering with Baitong Electric
Choosing the right oil immersed transformer china partner means selecting a fabrication team that actually understands civil constraints, international fire safety codes, and rigorous testing protocols. At Baitong Electric, we do not just weld metal boxes; we engineer comprehensive, high-voltage solutions. If your upcoming grid expansion, mining operation, or industrial project requires robust, weather-defying power distribution, our technical desk is ready to review your single-line diagrams today.
