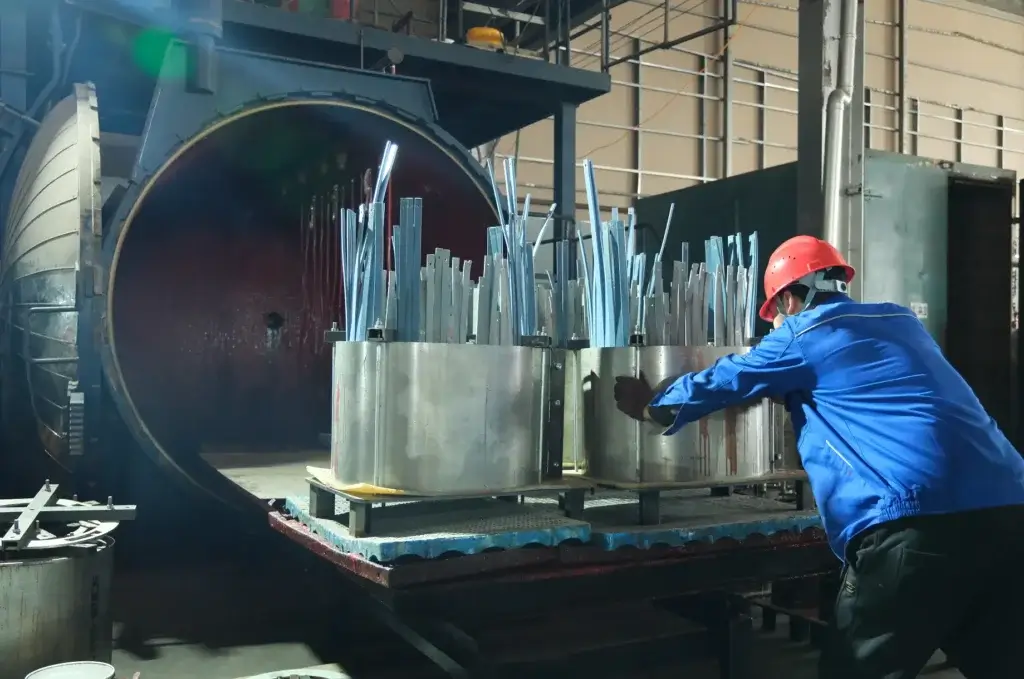

Welcome to the Baitong Electric manufacturing floor. Look closely at the detailed factory photograph above. Our technician is wearing a red safety helmet. He is pushing heavy coil molds carefully. These molds are entering a massive industrial oven. This specific equipment handles the vacuum casting process of dry type transformer. Many online suppliers lack this heavy machinery completely. They simply resell equipment built by others. We are a true source manufacturing facility. This article details our advanced insulation engineering. You will see our absolute commitment to industrial safety.
Why Perfect Insulation Matters
Heavy electrical equipment handles dangerous high voltages daily. Internal copper coils require perfect electrical insulation always. Air gaps inside the insulation are extremely dangerous. They cause sudden catastrophic partial discharge events. This can destroy the equipment and halt your operations. The vacuum casting process of dry type transformer prevents this. We encapsulate the coils completely in solid resin. This solid barrier blocks moisture and dust perfectly. It ensures decades of safe continuous operation. Your facility demands this ultimate reliability.
Preparing Precision Coil Molds
Let us look at the manufacturing steps closely. First, our engineers wind the copper coils precisely. Then, they place the coils into heavy steel molds. You can see these cylindrical molds in the photograph. Notice the vertical metal connection terminals pointing upward. They will connect directly to high-voltage cables later. Proper preparation guarantees a perfect final shape. Every single step requires extreme precision and care.
Entering the Giant Vacuum Chamber
Now, the heavy molds enter the massive oven. This is a specialized deep vacuum sealing chamber. The technician locks the heavy steel door tightly. The vacuum casting process of dry type transformer begins here. We extract all air from the massive chamber completely. This creates an extremely thorough vacuum environment. It pulls out all microscopic moisture trapped inside. Dry coils are absolutely vital for electrical safety. We monitor the precise pressure levels continuously.
Pouring Premium Insulating Resin
The next stage is crucial for engineering success. We mix premium epoxy resin with fine silica flour. This specific mixture improves thermal conductivity significantly. It helps the final equipment dissipate heat much faster. We pour this resin mixture into the molds. No air bubbles form because of the deep vacuum. The vacuum casting process of dry type transformer ensures perfection. The liquid resin penetrates every tiny gap easily. It surrounds the internal copper conductors completely and tightly.
Strict High-Temperature Curing
The resin must harden into a solid protective shell. We increase the internal oven temperature very slowly. This initiates the thermal curing process safely. The vacuum casting process of dry type transformer requires strict temperature control. If it cures too fast, the resin cracks. If it cures too slow, production halts completely. We follow international thermal curing curves strictly. This guarantees the coils possess extreme mechanical strength. They survive severe electrical short circuits easily.
Final Inspection and Demolding
The curing process takes many hours to finish. Finally, we open the heavy steel chamber door. The equipment cools down to a safe room temperature. We extract the solid red coils from the molds. The final surface is extremely smooth and void-free. We test these coils in our factory laboratory. The vacuum casting process of dry type transformer proves its value. We verify its excellent partial discharge performance. You always receive a complete factory testing report.
Advanced Eco-Friendly Power
Traditional grid equipment uses flammable liquid insulating oil. Oil leaks cause massive environmental disasters very quickly. Soil contamination brings heavy fines to operators. Our cast resin equipment eliminates this risk entirely. There is absolutely no liquid oil inside the machine. The vacuum casting process of dry type transformer creates green energy. You can install it safely in sensitive environments. You do not need expensive concrete oil catchment pits. This simplifies your initial site construction work significantly.
Your Trusted Manufacturing Partner
Partnering with a true manufacturer saves you capital. It guarantees the ultimate safety of your power grid. We supply premium equipment to global industrial clients daily. The vacuum casting process of dry type transformer is our specialty. We execute strict quality control protocols every single day. Do you need reliable power distribution equipment? Partner with a factory that understands heavy engineering deeply. Contact our technical sales engineering team right now. We provide complete manufacturing transparency for all clients.
