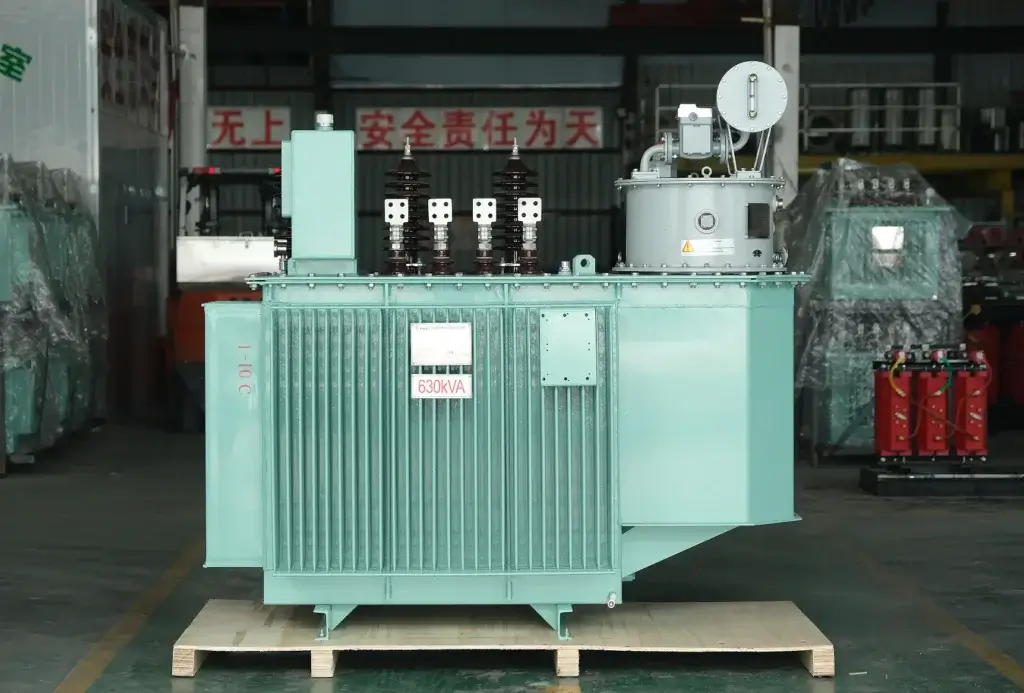

Welcome back to the Baitong Electric factory floor. The photograph above showcases our latest production triumph. It features a freshly painted, fully assembled unit. This is our highly requested s13-20kv 630kva oil immersed transformer. It sits securely on a heavy-duty wooden shipping skid. It just passed our final quality control checks. It is now awaiting global ocean freight dispatch.
In the heavy electrical manufacturing industry, transparency is rare. Many online suppliers hide behind generic stock photos. We prefer to show you our actual work. This article explains the hardcore engineering behind this specific model. You will see why it dominates modern industrial power grids. We build equipment designed to outlast its warranty by decades.
Decoding the High-Efficiency S13 Standard
Let us decode the S13 designation first. It is not just a random factory model number. It dictates a stringent energy efficiency standard. Older grid infrastructure typically relies on outdated S11 designs. An s13-20kv 630kva oil immersed transformer performs much better. The secret lies entirely within the magnetic core construction.
We construct the core using premium cold-rolled grain-oriented silicon steel. This specific material is highly permeable to magnetic fields. It drastically reduces the transformer’s internal no-load losses. What does this mean for the end-user? It means the unit wastes far less energy. Even when idling, it remains highly efficient. Over a thirty-year lifespan, these cumulative energy savings are massive. EPC contractors actively seek this specification. It drastically lowers long-term operational costs for grid operators.
Built for 20kV Distribution Networks
This transformer connects directly to a 20kV distribution network. This primary voltage rating requires serious insulation engineering. Look at the tall brown porcelain bushings on the top deck. We source these from top-tier industrial ceramic manufacturers. They isolate the high-voltage lines from the grounded steel tank safely.
Inside the tank, our engineering is even more rigorous. We wind the high-voltage coils with pure oxygen-free copper wire. We wrap the coils tightly in highly durable insulating paper. The entire core and coil assembly goes into a vacuum oven. We bake out every single drop of moisture completely. Next, we inject premium dielectric oil under a deep vacuum. This guarantees an s13-20kv 630kva oil immersed transformer with zero trapped air. It operates safely without dangerous internal partial discharges. It reliably steps down 20kV power to safe industrial levels.
Visual Inspection: Realities of the Factory Floor
Let us examine the physical details in the photograph. You can easily spot the red “630KVA” capacity print. It is stenciled firmly on the front panel. Just above it is the detailed stainless steel nameplate. It holds all the critical operational data for site engineers.
The tank itself features deep corrugated cooling fins. This s13-20kv 630kva oil immersed transformer utilizes ONAN natural cooling. ONAN stands for Oil Natural Air Natural. Heat generated inside transfers to the mineral oil. The hot oil naturally rises and flows outward into the fins. Ambient air cools the steel fins silently. The cooled oil then sinks back to the bottom naturally. This thermal cycle requires absolutely no mechanical pumps. There are no external cooling fans to break down. This means zero maintenance for your cooling system.
On the top right, you see the cylindrical conservator tank. It manages the thermal expansion of the oil perfectly. It sits next to critical safety gas relays. These protect your electrical substation from severe damage during internal faults.
Packaging and Global Dispatch Logistics
Shipping heavy electrical equipment is a massive logistical challenge. Our dispatch bay handles this safely every single day. Look at the sturdy wooden base under the green unit. We design these custom skids for heavy dynamic loads. Forklifts can maneuver the unit safely around the factory floor. The thick wood absorbs brutal shocks during rough transit.
In the background, you can see other finished units. We cover them in thick protective plastic sheeting. This protects the pristine paint from harsh factory dust. It also blocks corrosive salt air during ocean freight. We want your s13-20kv 630kva oil immersed transformer to arrive looking brand new.
Before packaging, every unit faces brutal factory acceptance tests. We test the insulation resistance with high-voltage megohmmeters thoroughly. We check the exact voltage ratio of every phase. Our welding seams undergo strict oil leak detection tests. We guarantee flawless electrical performance before it leaves our doors.
Partner with a True Manufacturer
Baitong Electric builds infrastructure you can trust completely. We understand that grid downtime is incredibly expensive. Our manufacturing processes focus entirely on long-term reliability. We source only the best raw materials globally. You get absolute peace of mind with every bulk order.
Are you currently upgrading an aging industrial grid? Do you need high-efficiency equipment for a new mining project? Reach out to our technical sales engineers today. Send us your site specifications and single-line diagrams. We will provide a detailed manufacturing quote quickly.
