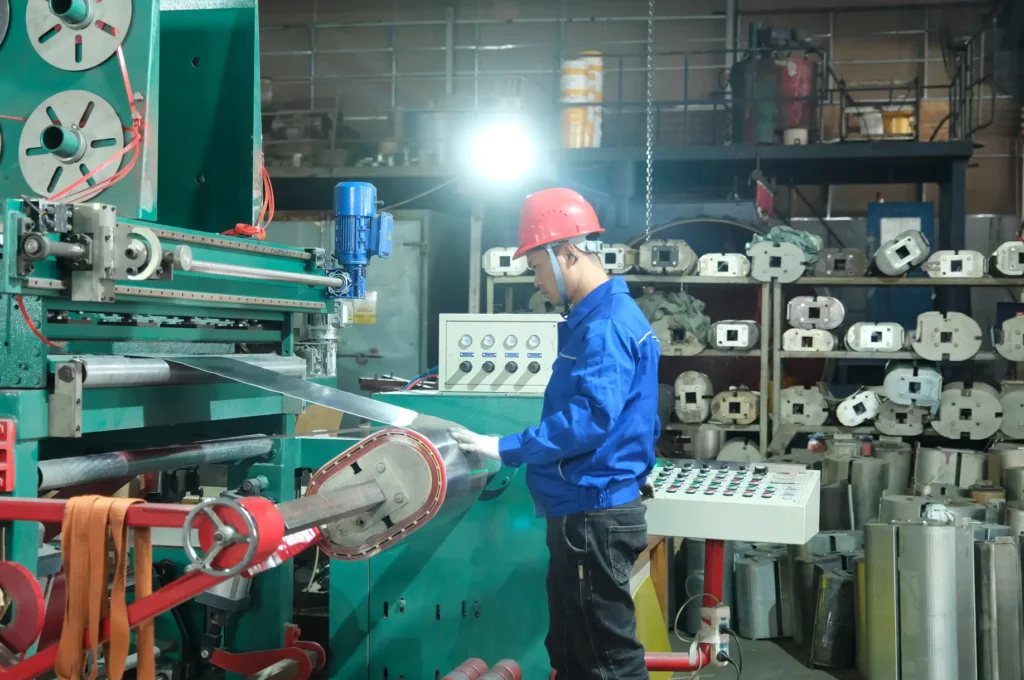

Welcome to the Baitong Electric manufacturing floor. Look closely at the detailed photograph above. Our skilled technician is operating a precision winding machine. He is crafting one of the most critical oil immersed transformer parts. Many online suppliers buy pre-made components from outside vendors. We manufacture our core components entirely in-house. This gives us absolute control over electrical quality. Let us explore the internal engineering of these massive machines. You will see our strict commitment to industrial excellence.
The Heart of the Machine: Precision Coils
The technician is currently winding a low-voltage coil. He uses wide, high-purity conductive metal foil. This is a crucial step in the manufacturing process. These coils form the actual electrical heart of the system. Poorly wound coils cause severe internal electrical shorts. We use automated tension controls on our winding machines. The machine uses heavy-duty tension rollers to guide the metal. This ensures a perfectly tight and uniform electrical coil.
Our technician monitors the metal foil alignment continuously. The control panel dictates the exact rotational speed. This avoids any physical stretching or stress on the metal. The background shows various specialized winding molds on shelves. We engineer different molds for specific capacity requirements. Dust particles can ruin the sensitive electromagnetic coil easily. We maintain a highly controlled environment for this step. High-quality coils are essential oil immersed transformer parts.
The Magnetic Silicon Steel Core
The finished coils must sit around a magnetic core. This core is another vital internal component. We construct it using premium cold-rolled silicon steel. This specific material minimizes internal magnetic energy losses drastically. We cut every single steel lamination with extreme precision. We stack them using a precise step-lap joint method.
This specific construction drastically reduces daily operating noise levels. It also improves the overall energy efficiency significantly. We never compromise on these hidden oil immersed transformer parts. Sourcing premium raw materials is extremely important to us. We buy premium electrical steel in massive bulk quantities. This factory-direct model eliminates expensive third-party vendor markups.
The Outer Steel Tank and Radiators
Let us move to the exterior components now. The main steel tank houses the active core safely. It is one of the largest oil immersed transformer parts. We weld this heavy-duty tank precisely to prevent leaks. Attached to the tank are deep corrugated steel radiators.
These deep metal fins provide critical natural cooling. They dissipate the intense internal heat into the ambient air. We coat the entire tank with industrial anti-corrosion paint. This protects the heavy steel from harsh outdoor weather conditions. Your equipment will not rust easily in humid environments.
High-Voltage Bushings and Conservator
Look at the top deck of a finished unit. You will see tall porcelain insulators bolted there. These are the high-voltage connection bushings. They isolate live incoming wires from the grounded steel tank. They are highly visible oil immersed transformer parts.
You will also see a cylindrical conservator tank. This tank manages the thermal expansion of the fluid. The oil volume changes as the internal temperature fluctuates. The conservator prevents dangerous pressure buildups inside the tank safely.
Insulation and Dielectric Fluid
The internal components sit completely submerged in dielectric oil. This mineral oil is a critical electrical insulating medium. It also acts as a highly efficient liquid coolant. Before adding the oil, we use high-grade insulating paper. We wrap the copper conductors tightly in this specialized paper.
The entire core assembly goes into a deep vacuum oven. We bake out all microscopic moisture completely. Then we inject the purified oil under a deep vacuum. This ensures perfectly reliable oil immersed transformer parts. Air voids cause catastrophic failure, so we eliminate them entirely.
Partner With a True Manufacturer
Sourcing heavy electrical equipment requires absolute trust. You need a manufacturer who controls the entire assembly process. Baitong Electric offers true factory-direct transparency to all clients. We do not hide behind generic internet stock photos. We show you our actual technicians building real equipment.
Are you planning a new industrial distribution grid? Do you need reliable power for a new manufacturing facility? Partner with a dedicated engineering factory today. Contact our technical sales team right now. We will build your next highly efficient power system.
