Indoor power systems demand extreme safety. You simply cannot risk oil leaks inside a building. Fire hazards are a major concern for indoor facilities. This is where expert dry type transformer design becomes critical. At Baitong Electric, we engineer reliable power solutions daily. We build these specialized electrical units for global commercial use. A smart dry type transformer design eliminates flammable liquids entirely. It uses natural air and solid resins for internal cooling. Let us explore how we manufacture these advanced units. You will quickly see why our factory delivers top-tier performance.
The Basics of Dry Type Transformer Design
Traditional power transformers use mineral oil for cooling. This oil poses a massive fire risk indoors. A modern dry type transformer design solves this problem completely. It relies heavily on natural air convection. Sometimes we add forced air cooling fans for extra capacity. This specific design is perfect for hospitals and schools. It is also ideal for underground subways and high-rise buildings. It requires absolutely zero liquid oil maintenance. It also removes the risk of toxic environmental leaks. We focus heavily on thermal management in our factory. Our engineers calculate internal airflow very precisely. This ensures the unit stays cool under heavy electrical loads.
Precision Assembly on the Factory Floor

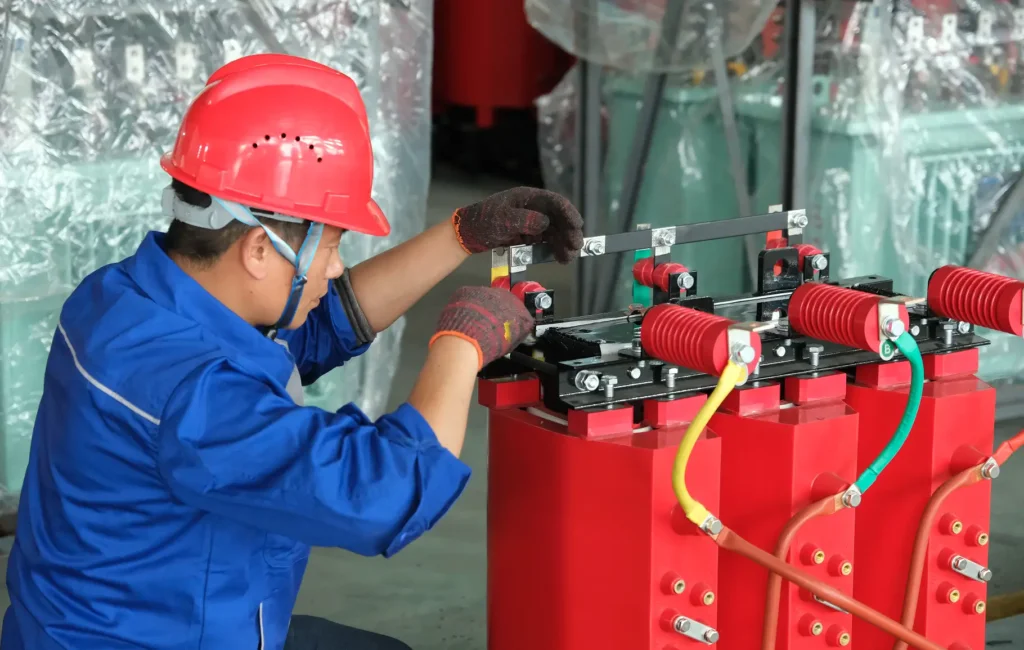

Take a closer look at this photograph. This photo shows our actual daily assembly process. Our skilled technician is wearing a standard blue uniform. He also wears a protective red safety helmet. He is carefully securing the top metal busbar connections. You can see the striking red cast resin coils clearly. This visual highlights our robust dry type transformer design. Every single structural bolt requires exact mechanical torque. Our factory workers follow strict, documented assembly protocols. The solid red resin completely encapsulates the copper windings. This solid barrier protects the core from moisture and heavy dust. It also provides excellent mechanical strength against physical shocks.
Premium Materials Ensure Long Life
Great engineering always requires great raw materials. We never compromise on material quality at Baitong Electric. Our dry type transformer design uses pure copper windings. Pure copper delivers the absolute best electrical conductivity. It handles sudden thermal stress much better than aluminum. We use high-quality epoxy resin for the casting process. The liquid resin cures under a strict vacuum environment. This vacuum process removes all trapped air bubbles. Trapped air causes dangerous partial electrical discharges over time. We also use premium cold-rolled silicon steel. We use this steel to form a highly efficient magnetic core. A great core reduces your daily energy losses significantly.
Unmatched Fire Safety and Environmental Benefits
Safety is our absolute highest priority during manufacturing. A failing transformer can cause a catastrophic facility fire. Our dry type transformer design is inherently fire-resistant. The specialized cast resin is entirely self-extinguishing. It will not support combustion if a fire starts nearby. It also produces zero toxic gases when subjected to heat. This makes it the safest choice for enclosed public spaces. Additionally, this equipment is incredibly eco-friendly. There is zero risk of soil or groundwater contamination. You never have to worry about expensive oil disposal procedures.
Managing Noise in Dry Type Transformer Design
Transformers naturally vibrate during normal electrical operation. This mechanical vibration causes a low humming noise. Indoor installations require very quiet equipment. We factor strict noise reduction into our dry type transformer design. We use precise stepped core joints during assembly. We clamp the steel core incredibly tight to stop shifting. We also install special rubber isolation pads. These thick pads sit directly under the main frame. They absorb the mechanical vibrations very effectively. This keeps your commercial building quiet and comfortable.
Custom Enclosures for Every Environment
Dry type units usually sit inside protective metal enclosures. We offer multiple steel enclosure options for our clients. Our standard dry type transformer design features an IP20 rating. This prevents fingers and large objects from touching live parts. For harsher indoor environments, we offer IP23 or higher. These upgraded enclosures block dripping water and heavy dust. We punch specific ventilation louvers into the steel panels. This allows hot internal air to escape easily. We paint every custom enclosure with durable powder coating.
Strict Quality Control and Global Standards
We test every single unit before it leaves our factory. Visual inspections are just the very beginning. We perform rigorous electrical testing in our laboratory. We measure the insulation resistance carefully. We test for load losses and no-load losses accurately. We also conduct severe high-voltage withstand tests. Our dry type transformer design meets strict global requirements. We strictly follow recognized IEEE standards for electrical manufacturing. We guarantee your new transformer will perform flawlessly.
Partner Directly with Baitong Electric
Why should you buy your equipment from Baitong Electric? You get direct access to the actual manufacturer. You avoid massive retail markups completely. We offer fully customized commercial engineering solutions. Do you need a specific voltage ratio or custom enclosure size? Our dedicated team adapts our dry type transformer design to your exact needs. We provide fast production times and secure global shipping. Contact our sales team today to discuss your requirements. Let us power your next big commercial project safely.
Frequently Asked Questions (FAQs)
Q1: How long does a cast resin dry type transformer usually last? With proper care, our factory units last 20 to 30 years. The solid cast resin prevents internal coil degradation. You simply need to keep the air vents clean and dust-free.
Q2: What is the main advantage of dry type over oil-filled? Fire safety is the absolute biggest advantage. A dry type unit contains zero flammable cooling oil. It is the perfect solution for indoor commercial buildings.
Q3: Can a dry type transformer be installed safely outdoors? They are primarily designed for indoor use. However, we can build custom NEMA 3R outdoor enclosures. This special weather-proof housing protects the unit from direct rain.
